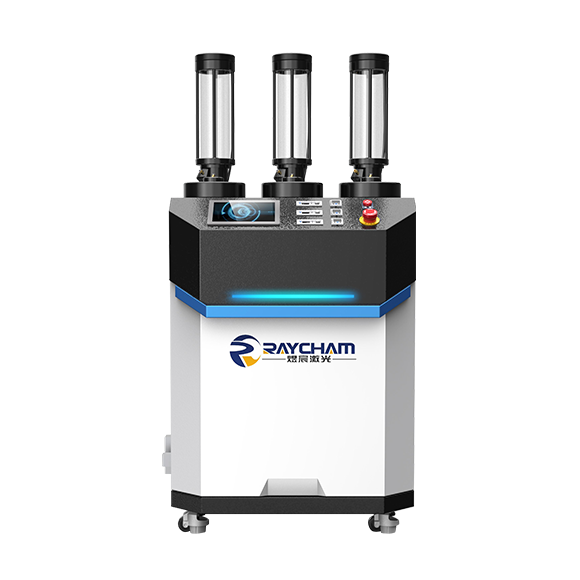

Three-barrel powder feeder
can be used simultaneously for various powder overlaying processes
RAYCHAM's independently developed carrier gas-based three-tube powder feeder can be used simultaneously for various powder overlaying processes. It has high reliability and safety, with flexible configuration of functional modules, making it suitable for scientific research experiments.
Project Name | Parameters and Descriptions |
Powder feeder structure | Three barrel three control type |
Dimensions | 70x50x140cm |
System configuration | Touch screen, Servo system, PLC (reserved external control interface) |
Powder feeding gas flow control method | Digital flow meter control/digital flow meter control |
Flow adjustment range | 1~20L/min |
Powder feeding particle size (with stirring) | 53-225 μm |
Repeat powder feeding accuracy | <±2% |
Powder barrel volume | 1.5L |
Powder disc specifications (standard) | 10x0.8mm |
Carrier gas type | Nitrogen, Argon |
Pressure display range | -0.1-1Mpa |
Powder disc speed range | 0~10r/min |
Support for expansion modules | Preheating, stirring, continuous powder feeding |
