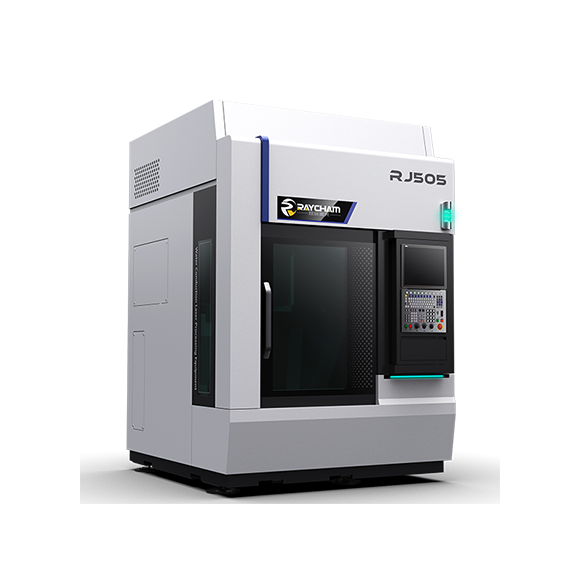

RJ505

Targeting medium and small complex structures,
such as turbine blades, turbine outer rings, small combustion chambers, CVD diamonds, tools, etc.

Ordering Equipment

Product Advantages/Features

  • The RJ505 features a marble-cast mineral bed, direct drive motor, high-precision transmission components, and sub-micron grating. It is equipped with a domestically produced five-axis CNC system, and the entire machine is assembled in a temperature-controlled environment with a constant temperature of ±1°C. The equipment's linear repeat positioning accuracy reaches the national standard of 4μm (or JIS standard ±1.5μm).

  • Smooth Surface
    The cutting surface is smooth with minimal thermal deformation and thermal damage.

  • Simple Operation
    The working distance is large, eliminating the need for focusing.

  • Fast and Accurate
    It offers high processing accuracy with narrow cutting widths and can cut 1.6mm PCD and carbide at a speed of 3mm/min.

  • Straight Cut Edges
    The cuts are free of taper, sharp, and perfectly parallel.

Technical Parameter

System

Project Name

Parameters and Specifications

Optical System

Laser Type

Nd:YAG,pulsed

Wavelength  nm

532

Average Power  W

200

Fiber Core Diameter  μm

Φ200

Water Cooling System

Water Pressure Stability  bar

±5

Water Pressure bar(max)

500

Nozzle Diameter μm

50-100

Motion System

Processing Range (Including Fixtures)  mm

Φ500×400(5-axis)   600×780×500(3-axis)

A-axis Rotation Range °

-120~+20

C-axis Rotation Range °

N×360

X/Y/Z-axis Positioning Accuracy μm

6(ISO)

X/Y/Z-axis Repeat Positioning Accuracy μm

4(ISO)

Table Size  mm

Φ630

Table Load Capacity kg

600/300(90°)

CNC System

Huazhong 848 Five-Axis Linkage

Dimensions and Weight

Equipment Dimensions(W×D×H)mm

2400×3500×3300

Optical and Water Assembly Cabinet Dimensions(W×D×H)mm

700×1800×1720

Equipment Weight  kg

12500

Optical and Water Assembly Cabinet Weight kg

700-750
